Knowing More About Diamond Cutting Blades With One Essay

raizi-diamond-saw-blades

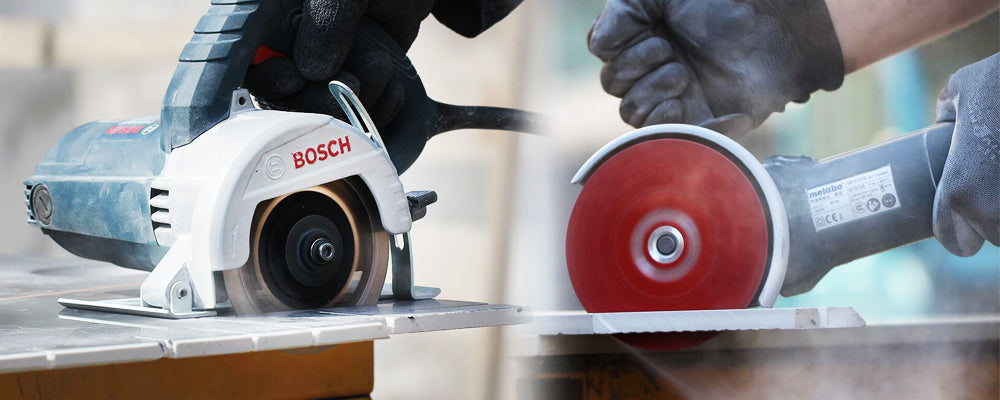

Cutting and grinding, the two most aggressive procedures in your fabrication process, have a large room for labor, time and money conservation by employing high-quality products. Raizi diamond saw blades are designed in and produced with premium raw materials and high-end technologies, equipped with longer life and more consistent performance than others in the market to better fulfill your various needs. Today we are going to introduce to you these saw discs in four different parts:

  1. Specialized discs for certain kinds of material;
  2. Discs for general usage;
  3. Discs for special demand;
  4. Postscript: spare parts and special designs;

Part 1 specialized discs for certain material

With special designs and techniques, these blades are perfectly suitable for certain materials. It is not like that they should only be used on certain kinds exclusively, but on other materials, their performance may not be as perfect as on those recommended.

raizi-diamond-cutting-discs

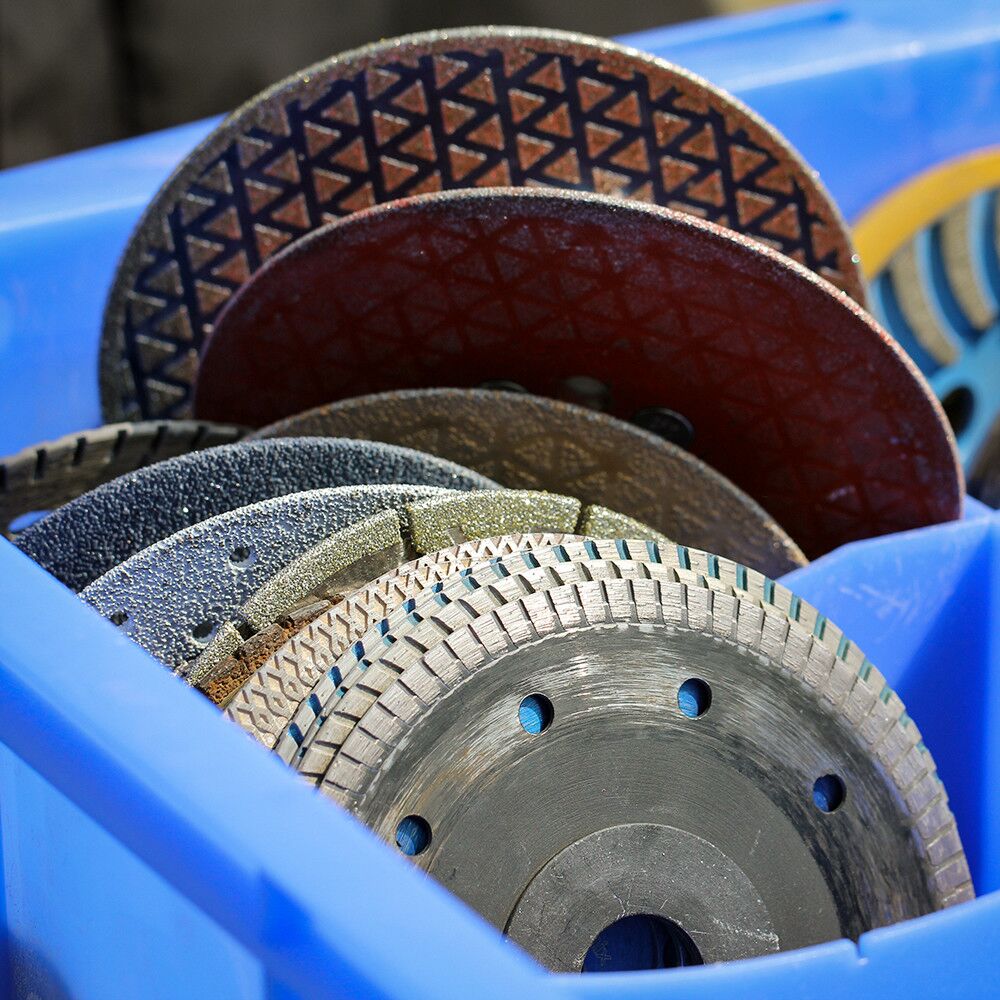

Type 1 Discs specially designed for ceramic, tile and porcelain

To fit the properties of these stones, this kind of blade is made extra thin so as to provide clean and rapid removal with minimal chippings. The high-standard diamond particles as well as the advanced manufacturing techniques also serve as promises for their long-lasting duration and quality. Features deserving to be mentioned are their special-patterned rims and special techniques. Here are three popular systems we selected for demonstrations.

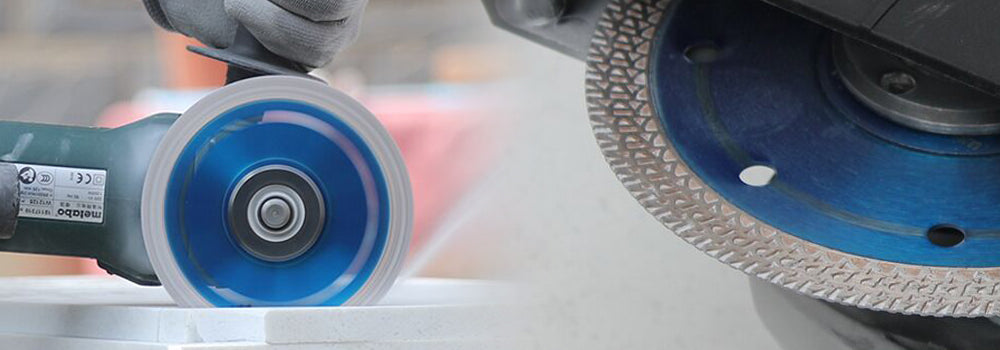

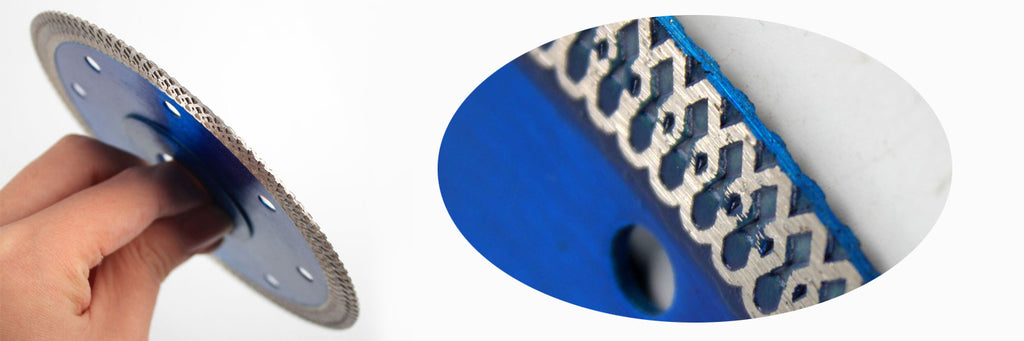

  1. Special-patterned blades

Mesh dimple pattern ensures better cutting performance and faster speed.

porcelain-cutting

tile-cutting-disc

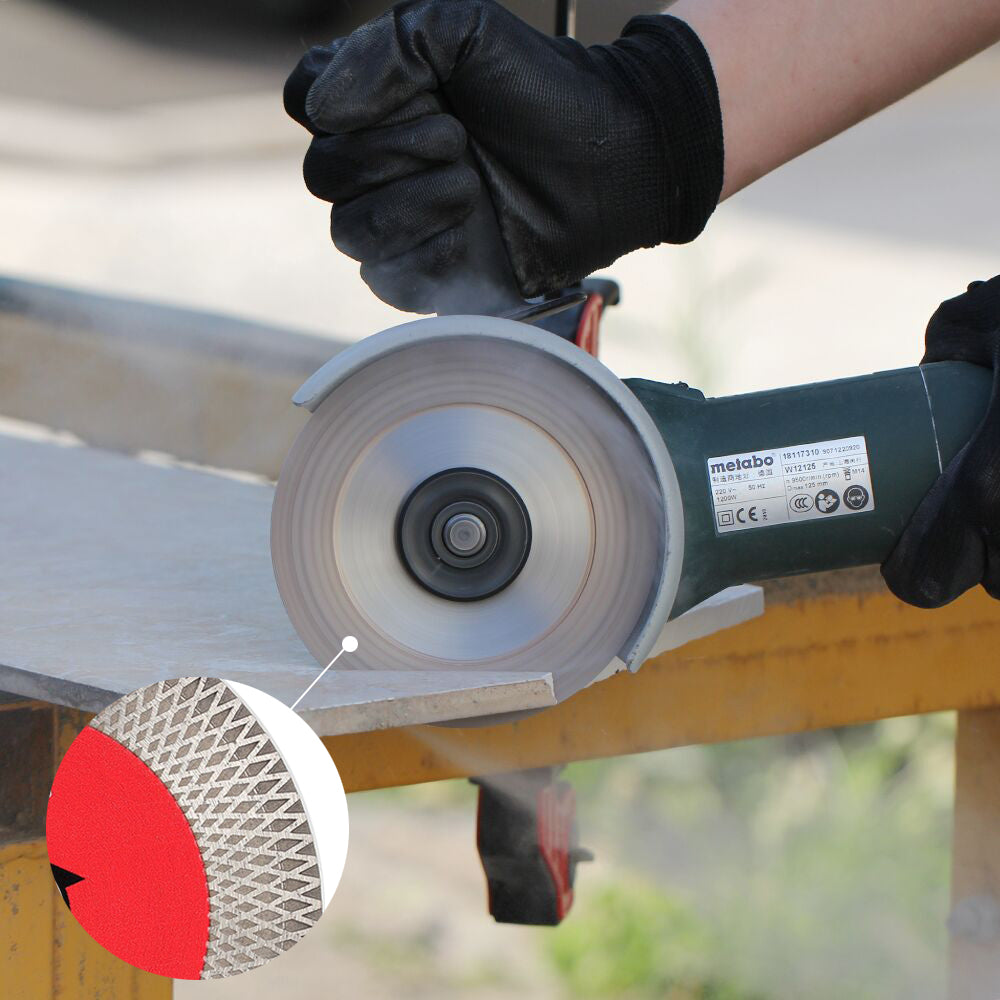

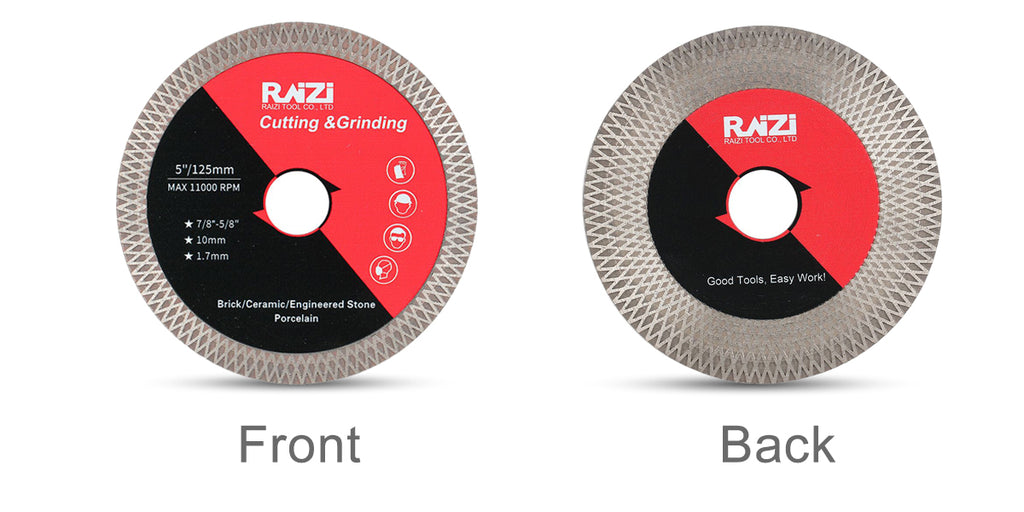

  1. Blades with segment height difference

Segment difference allows the dual usage of both cutting and grinding: the thin for cutting and the wide for grinding.

diamond-cutting-grinding-disc

diamond-cutting-grinding-disc

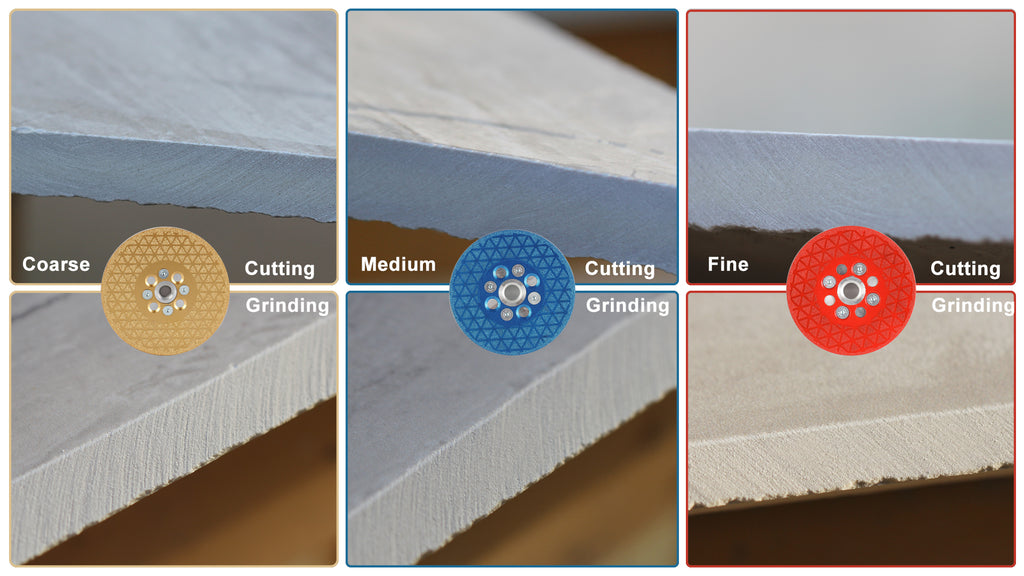

  1. Blades made with vacuum brazing technique

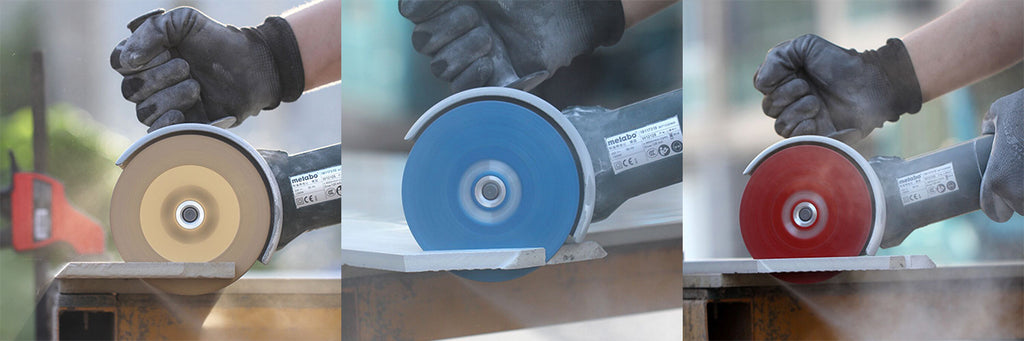

Best-selling products ever! Offering optimal solutions for cutting and grinding, they vary in diamond grit concentration from low degrees to high, with #40/50 as coarse, #70/80 medium and #100/120 fine, and is capable of meeting all your demands. Different from regular blades, they are equipped with detachable flanges of two threads, M14 and 5/8”-11.

diamond-cutting-grinding-discs

tile-cutting-discs-saw-blade

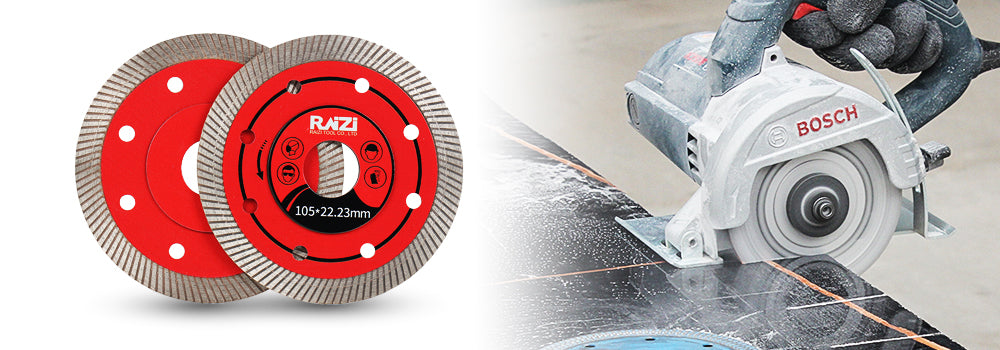

  1. Ultra compact surface blades

This kind is specially designed for hard materials like Dekton and sintered porcelain. Extra thin design together with the reinforced core enables the blade to cut quickly and precisely on these kinds of tough stones.

raizi-ultra-compact-diamond-saw-blade-for-dekton

Type 2 discs specially designed for granite and quartz

These two types of stones are characterized by their high degree of hardness, as you can imagine, the systems designed for them are supposed to give more aggressive and faster cutting. Here are three features of them that can help enforce the mentioned capacity: turbo pattern, segments, and side protection (the three-in-one design is also available). With such special designs together with the premium diamond particles in the blades, these systems can provide sharp cutting performance and long duration, with consistency and minimal chippings.

Here come our popular granite cutting discs:

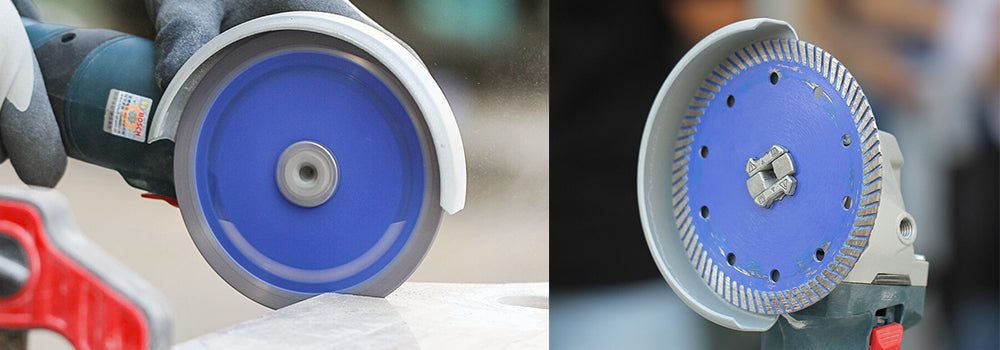

  1. Turbo blades

The turbo rim is like a combination of numerous small “segments” to offer aggressive and straight cutting. As you can see in the picture above, the blade has a X-lock center hole in the middle, which is specially designed for Bosch angle grinder machines.

x-lock-cutting-saw-blade-for-bosch-angle-grinder

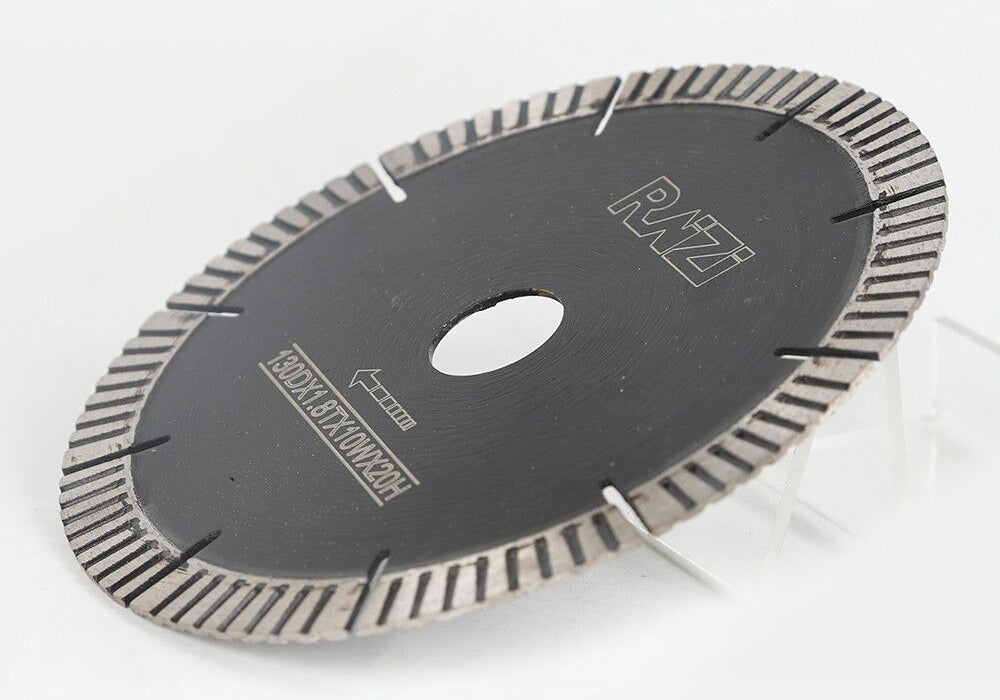

  1. segmented blades

Segments, both the small and the big, amount to the reinforcement of aggressiveness and improved efficiency.

segmented-turbo-blade

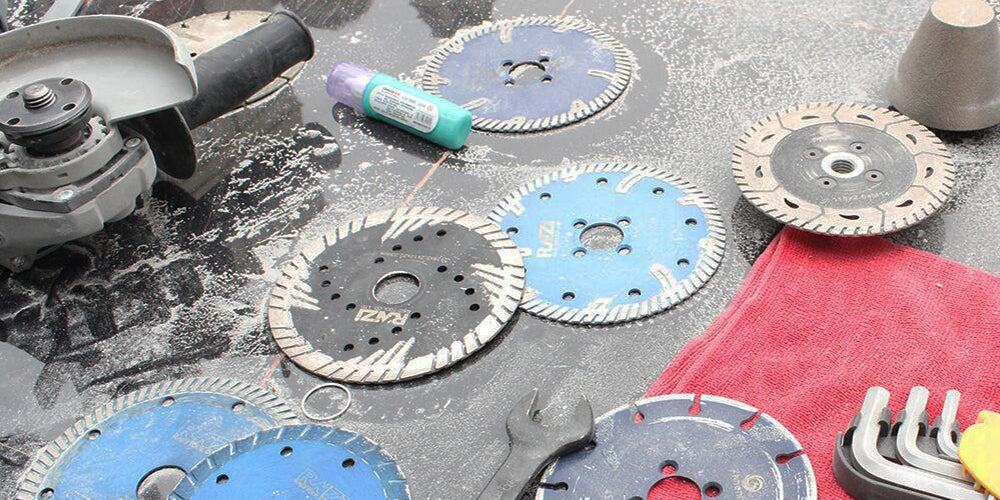

  1. Blades with side protection

Side protection can help the blade to bite deep into your materials and enable them to last longer.

granite-saw-blade

Type 3 discs specially designed for marble stone

This kind of blade is produced with electroplated technology, which guarantees the system’s quality and makes them work better on marble or the like soft stones. In addition, with high concentrations of quality diamond particles bonded on the surface, these blades are able to offer flush and smooth cuts with few chippings.

For this kind, we got several popular products below for demonstrations.

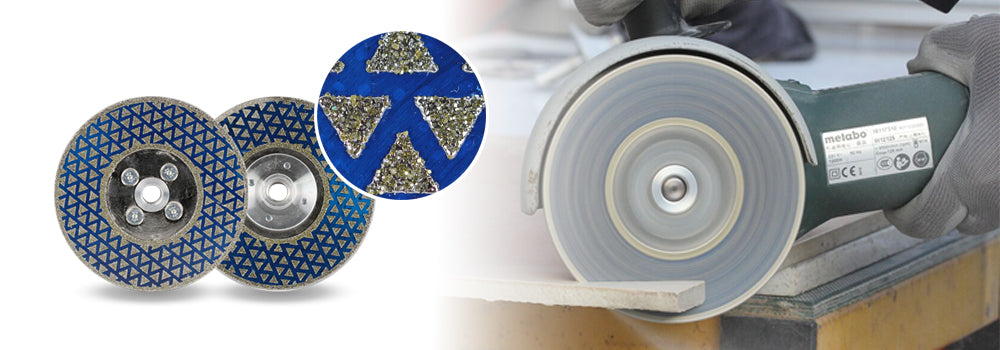

  1. Discs with continuous rims( for cutting or grinding)

Diamond particles covering all the blade increase grinding efficiency, with no hurt to the cutting quality.

marble-cutting-saw-blade

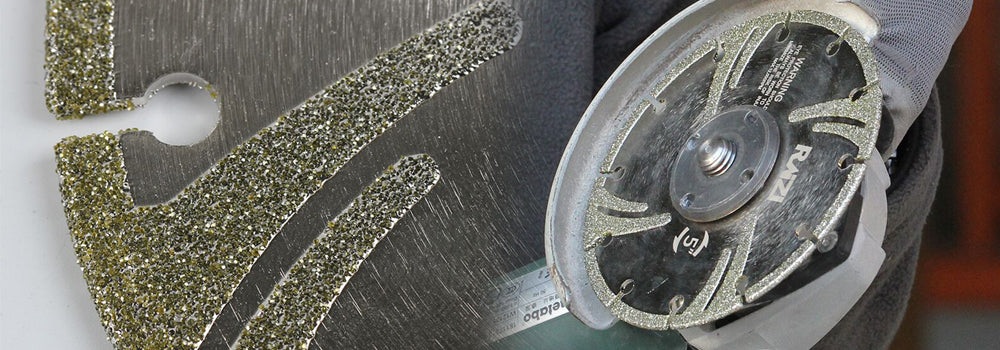

  1. segmented blades:

Segment for enhanced aggressiveness.

raizi-electroplated-cutting-saw-blade

p.s. if you want to know more about the differences between the blades with continuous rims and those with segments, scroll down the page and read Part 4.

Part 2. General use discs for all nearly kinds of materials

These discs are produced with particular techniques and are qualified to deal with all sorts of materials including granite, marble, sintered stones, wood and even metal. Here we are going to introduce two kinds of them.

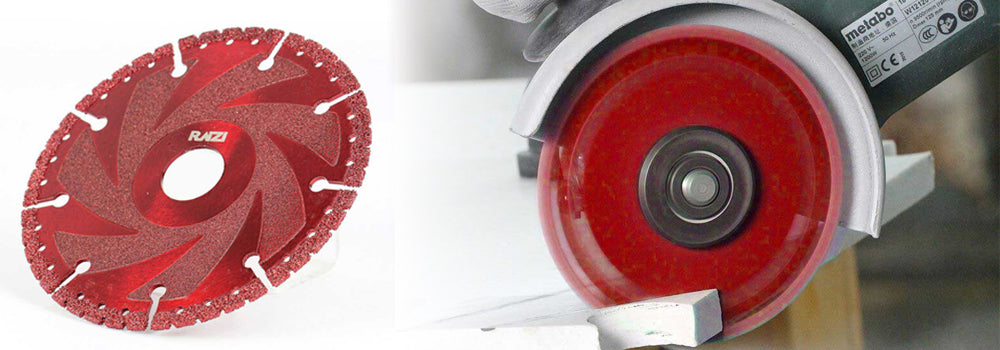

  1. Vacuum brazed discs featured with segmented rims

Made with vacuum brazing technology, this kind of blade is coated with abrasive grains, which, combined with segments, can provide both smooth and sharp cut and longer disc life. It is also granted with exceptionally consistent performance and optimized efficiency.

Gerneral-Purpose-Cutting-Blade

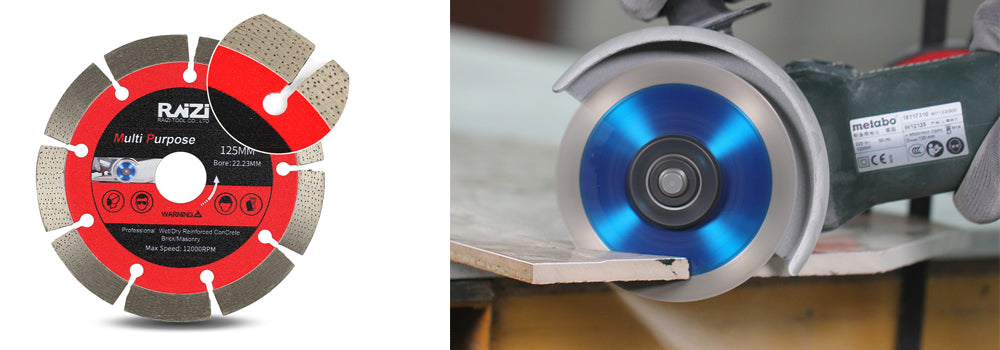

  1. Array layer diamond discs

As you can see from the name, this kind of disc is made with diamond particles protruding from the segmented rim in an ordered array, rendering the product an aggressive, sharp and precise cutting capacity that can almost deal with all sorts of hard stones you can imagine. The high quality of the diamond particles is also a guarantee of their longer life and faster speed.

reinforced-concrete-cutting-blade

Part 3 cutting discs for special use

These types of blades are used to fulfill specific demands, like curve cutting and crevice cleaning, and those big aggressive discs used on machines are also included. We’ll show you here below.

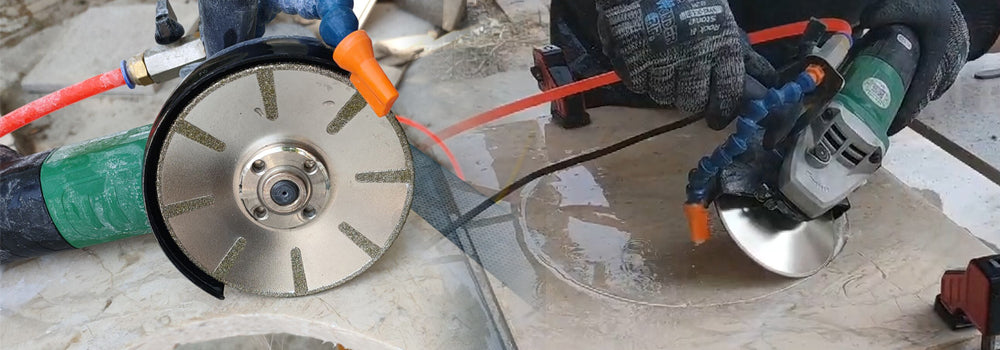

Type 1 contour cutting blades

This kind of blade is specially designed for curve-cutting applications, like sinks or tubs. With all rim patterns available (segments, turbo rim, electroplated rim, etc.), they can be customized to meet the different needs of different materials. As for this kind, with the segmented rim of arrayed diamond particles, it works perfectly on processing curved cutting on hard stones like granite and quartz, leaving chip-free and smooth edges.

Electroplated-Contour-Cutting-Blade-for-marble

Type 2 discs used on Cutting Saw

These kinds of blades are relatively large in size, with diameters mainly varying from 300mm/12 “ to 450mm/18”. Here we’ll introduce three of them.

1. Bridge saw blade

Bridge saw blades are designed for high-speed and clean cuts on big hard stones. Segmented rims attached with premium arrayed diamond particles enhance their cutting performance and prolong their durability, rendering them an optimal solution for the various needs in tackling your processing work.

bridge-saw-blade-for-dekton-granite2.Crevice cleaning blades and tuck point blades

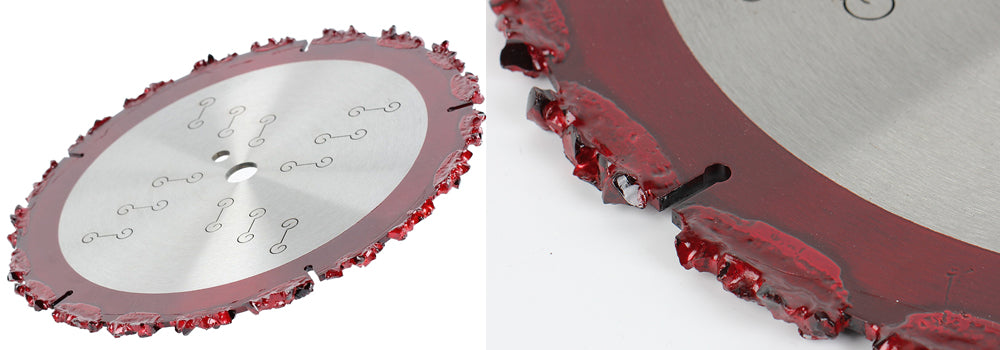

These discs are for special use such as grooving and crevice cleaning (especially in fire rescue or road works). That requires the aggressive, clean and fast cutting performance of the blades so as to guarantee efficiency, save time, and reduce the number of reworks. Taking perturbing noise into consideration, some of them are also expected to do the cutting work as quietly as possible.

raizi-demolition-carbide-saw-blade-for-iron-steel-all-purpose

3. Specific milling wheel for bridge cutting machine

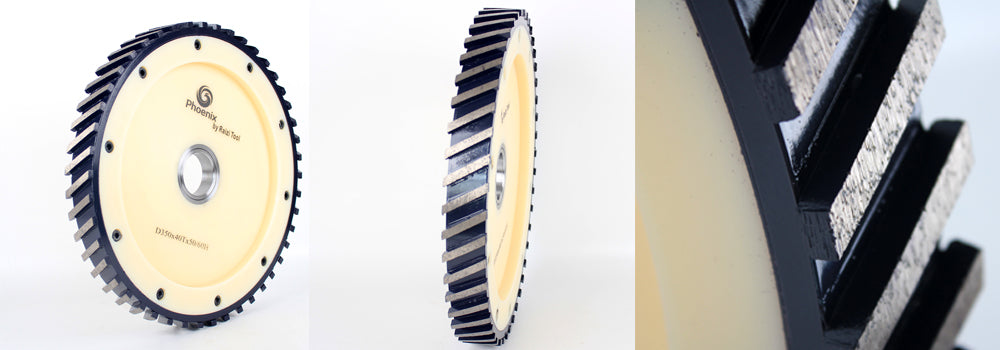

These so-called milling wheels, used for grinding and milling, also belong to the saw blade category in our store. And the kind I will introduce to you is the Raizi Silent Diamond Milling wheel, which is mainly used for calibrating granite and engineered stone slabs and leveling concrete countertops. It is made with Teflon silent core, and on its segmented rims protruding quality diamond particles that grant it aggressive processing performance and elongated life.

Raizi-Nylon-Teflon-Silent-Core-Diamond-Milling-Wheel

Part 4 postscript: spare parts and special designs

  1. Accessories:

As we know, these blades are used on machines( big or small), so the adapter is quite important. In most circumstances, the flange is a handy measure for connection: screwed on the blade through their quad holes, it can help to attach the blade to machines with different threads, and all you have to do is to change the right flange, simple and handy right?
  1. Special designs

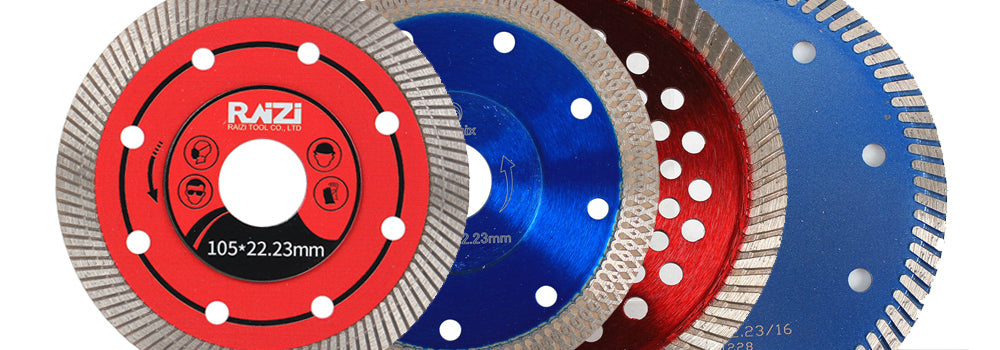

A: Cooling holes: holes allow water through for heat reduction, a measure for disc life elongation. Not equipped on all blades.

diamond-saw-blade

    B: Continuous rim and segmented rim

    First of all, segmented rims can increase the aggressiveness of cutting with the added sharp angles. They fit more on hard stone processing of course, but when dealing with soft ones like marble and ceramics, they may be too tough and may cause unwanted hurt to your material. In the contrast, continuous rims can provide smoother cutting that fits these soft stones better.

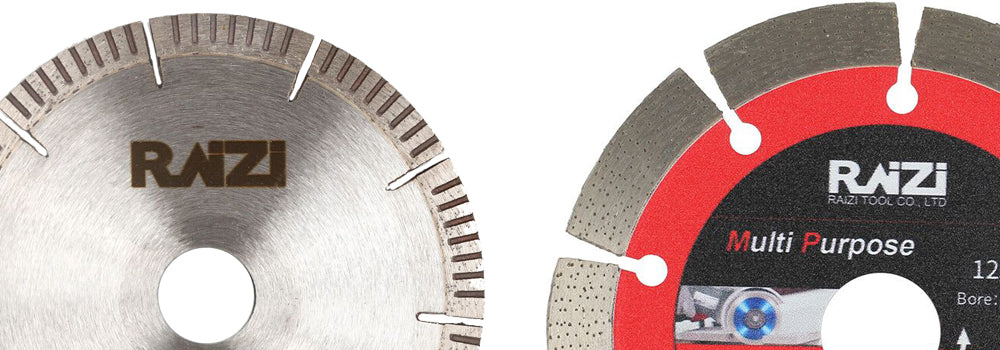

    C: Segment shape: key slot or u slot

    saw-blade

    As the pictures show, these two shapes of slots are the most commonly seen patterns. Despite the key slots having more “cooling holes” than u slots do, they are not that different from each other.
